| Model | SH45M | |
|---|---|---|
| Voltage (Single Phase) | 220 – 240V AC 50 / 60 HZ | |
| Motor Rated Power Consumption | 1850W | |
| Motor Rated Ampere | 15A | 7.5A |
| No-load Speed | 650 – 720 rpm | |
| Tool Adaptor Inner Diameter | 19.05mm | |
| Adjustable In Height For Max. Stroke | 100mm | |
| Coolant Supply | Via Tool Holder | |
| Magnet Power Consumption | 38W | |
| Magnet Adhesion | 7350 N / 750 kgf | |
| Magnet Dimensions | 188mm x 86mm x 56mm | |
| Weight | 15kg | |
| HOLE-CUTTING CAPACITY | ||
| Annular Cutter | Out Diameter | Plate Thickness |
| 18-45mm (Standard) | 9-50mm (Standard) | |
| Drill Chuck & Twist Dri | Max. Outer Diameter 13mm | |
| Special Adaptor & Twist Drill | 6-12mm | |
| STANDARD ACCESSORIES | 1. Pilot Pin 8.0 x 91mm : 1pc 2. Double Open End Wrench : 1pc 3. Hex. Key Wrench 2.5mm: 1pc 4.0mm: 1pc 6.0mm: 1pc 4. Operating Handle : 3pcs 5. Lifting Handle : 1pc 6. Fuse Block : 1pc 7. Fixed Screw : 1pc 8. Operation Manual : 1copy | |
| Special Adaptor & Twist Drill | 1. Adaptor Arbor Of Drill Chuck 2. Drill Chuck 3. Annular Cutter (one touch or Weldon shank) 18mm-45mm (for 35mm or 50mm thickness) 4. Twist Drill (Max. 13mm) 5. Miyanach X-1 Cutting Oil : 2L / per can 6. Special Adaptor & Twist Drill 6-12mm 7. Safety Chain | |
- 03-9221 9633
- 06-351 2633
- 07-388 8733
- 016-711 3687
Products

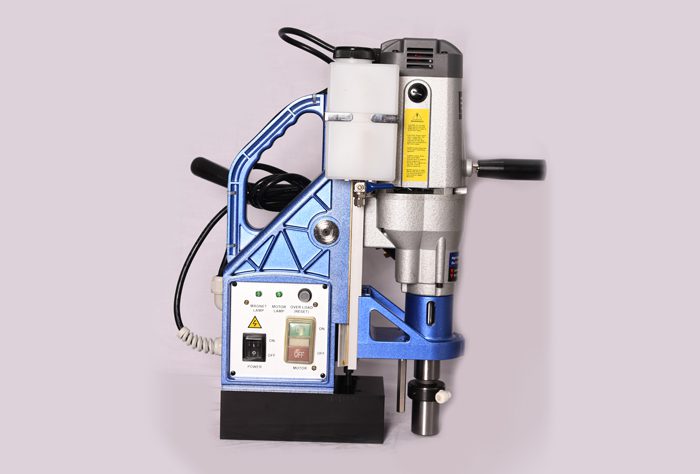

SHIYO SH45
